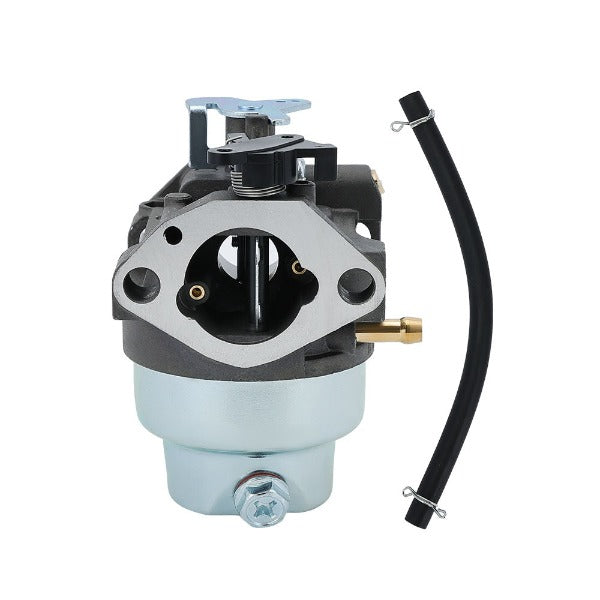

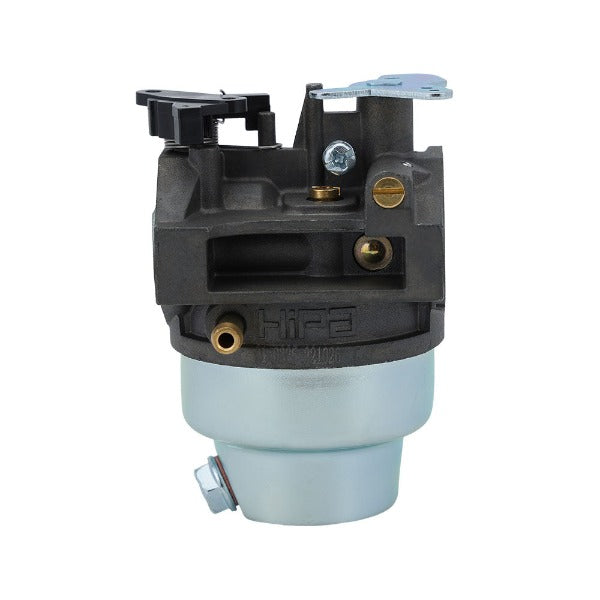

Hipa Carburetor Kit for Honda GCV160 GCV160A GCV160LA GCV160LE Engine HRT216 HRB216 HRR216 HRS216 HRZ216 Lawn Mower # 16100-Z0L-023 16100-ZM0-804
Hipa Carburetor Kit for Honda GCV160 GCV160A GCV160LA GCV160LE Engine HRT216 HRB216 HRR216 HRS216 HRZ216 Lawn Mower # 16100-Z0L-023 16100-ZM0-804
Couldn't load pickup availability
● Aftermarket Carb Dimensions:
Mounting Hole Distance(Center to Center): 44mm, Throttle Bore Diameter：18mm, Choke Bore Diameter: 24.5mm, Venturi Diameter：13mm, Fuel Inlet Line Diameter：5mm.

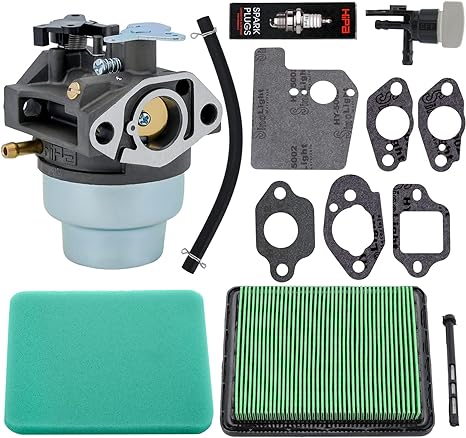

● Package Includes: carburetor*1, gasket*6, fuel shut-off valve*1, spark plug*1, fuel filter*1, air filter*1, pre-filter*1.

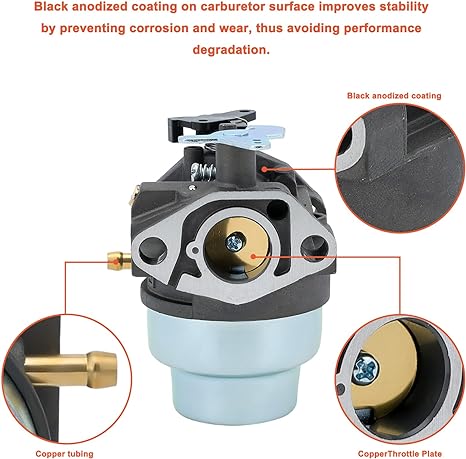

● Quality Material, Quality Carburetor
Resistant to Heat, Corrosion, and Wear

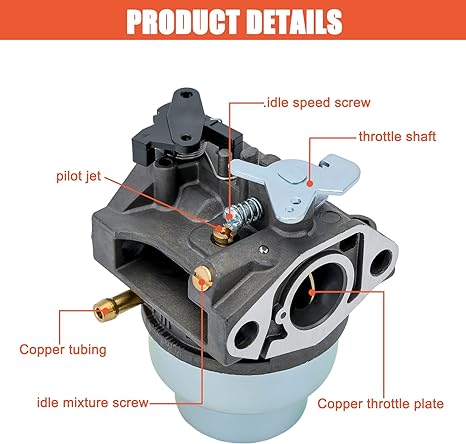

Brass Components(fuel fitting, throttle plate, idle mixture screw, main nozzle), Composite Rubber Diaphragms, Anodized Aluminum Carburetor Body.
This part is compatible with the following machines:
HRB216: (Type HXA)(VIN# MAAA-1000001) Lawn Mower /(Type HXAA)(VIN# MAAA-1000001) Lawn Mower/ (Type TDA)(VIN# MAAA-1000001) Lawn Mower /(Type TDAA)(VIN# MAAA-1000001) Lawn Mower/(Type TXA)(VIN# MAAA-1000001) Lawn Mower/HRB216 (Type TXAA)(VIN# MAAA-1000001) Lawn Mower/(Type PDA)(VIN# MZCG-6000001 to MZCG-6152286) Lawn Mower/HRR216 (Type S3DA)(VIN# MZCG-6000001 to MZCG-6157470) Lawn Mower/(Type SDA)(VIN# MZCG-6000001 to MZCG-6299999) Lawn Mower
HRR216K2 (Type PDAA) (Type SDAA) (Type TDAA)(VIN# MZCG-6700001 to MZCG-7199999) Lawn Mower
HRR216K3 (Type PDA) (Type TDA)(Type VXA)(VIN# MZCG-7200001 to MZCG-7599999) Lawn Mower
HRR216K4 (Type PDA) (Type TDA) (Type VXA)(VIN# MZCG-7700001 to MZCG-7799999) Lawn Mower
HRR216K5 (Type PDAA) (Type VXAA)(VIN# MZCG-7800001 to MZCG-7999999) Lawn Mower
HRR216K6 (Type PDAA) (Type VXAA)(VIN# MZCG-8000001 to MZCG-8199999) Lawn Mower
HRS216 (Type PDA)(VIN# MZBZ-6000001 to MZBZ-6067704) Lawn Mower/(Type SDA)(VIN# MZBZ-6000001 to MZBZ-6065864) Lawn Mower
HRS216K1 (Type PDA)(Type PDAA) (Type SDA) (Type SDAA)(VIN# MZBZ-6100001 to MZBZ-6299999) Lawn Mower
HRS216K2 (Type PDAA) (Type SDAA)(VIN# MZBZ-6300001 to MZBZ-6369999) Lawn Mower
HRS216K3 (Type PDAA) (Type SDAA)(VIN# MZBZ-6370001 to MZBZ-6399999) Lawn Mower
HRS216K4 (Type PDAA) (Type SDAA)(VIN# MZBZ-6400001) Lawn Mower
HRT216 (Type S3DA)(VIN# MZCG-6000001 to MZCG-6195898) Lawn Mower/(Type SDA)(VIN# MZCG-6000001 to MZCG-6195138) Lawn Mower
HRT216K1 (Type PDA)(VIN# MZCG-6300001 to MZCG-6599999) Lawn Mower/(Type PDA/A)(VIN# MZCG-6600001 to MZCG-6699999) Lawn Mower/(Type PDAA)(VIN# MZCG-6300001 to MZCG-6599999) Lawn Mower/(Type PDAA/A)(VIN# MZCG-6600001 to MZCG-6699999) Lawn Mower/ (Type S3DA)(VIN# MZCG-6300001 to MZCG-6599999) Lawn Mower/(Type S3DA/A)(VIN# MZCG-6600001 to MZCG-6699999) Lawn Mower/ (Type SDA)(VIN# MZCG-6300001 to MZCG-6599999) Lawn Mower/(Type SDA/A)(VIN# MZCG-6600001 to MZCG-6699999) Lawn Mower/(Type SDAA)(VIN# MZCG-6300001 to MZCG-6599999) Lawn Mower/(Type SDAA/A)(VIN# MZCG-6600001 to MZCG-6699999) Lawn Mower/(Type TDAA)(VIN# MZCG-6300001 to MZCG-6599999) Lawn Mower/(Type TDAA/A)(VIN# MZCG-6600001 to MZCG-6699999) Lawn Mower
HRT216K2 (Type TDAA)(VIN# MZCG-6700001 to MZCG-7199999) Lawn Mower
HRZ216 (Type TDAA)(VIN# MAFA-1000001) Lawn Mower
GCV160A0 (Type S3DB)(Type S3TE)(VIN# GJAPA-1300001-9999999) Engine
HRS216K5 (Type PKAA) (Type SKAA)(VIN# GJARA-1000001-9999999) Lawn Mower
HRR216K9 (Type VYAA) (Type VLAA) (Type PKAA) (Type VKAA)(VIN# GJAPA-1000001-9999999) Lawn Mower
Hipa GCV160 Carburetor for Honda lawnmower and Pressure Washer
For Honda GCV160 Type (A1A, A2A, A2R, HON, GCT, RAN, N1, N2, A1AE, A1AF, A3A, N1AF, N5AF)(use up to engine SN 2225727) Honda ENGINE GCV160A Type (A1A, A1AE, A1AF, A1AS, A2A, A2R, A3A, BHH, E1A2, E1A4, E1G7, E5A4, EHHB, HON, GCT, RAN, N1A, N1AF, N5A, N5AF, NBL1,A1AE, A1AF, A3A, N1AF, N5AF)(use up to engine SN 2225727)
Honda GCV160LA Type (A1A, A2R, BHH, E1A2, HON, GCT, RAN, N1A) Honda ENGINE GCV160LA0 Type (A1A, A2R, BHH, E1A2, HON, GCT, RAN, N1A)
Honda GCV160LE Type (A2A9, A4A9, HON, GCT, RAN) Honda engines GCV160 and GCV160A (A1AE, A1AF, A3A, N1AF, N5AF) (use up to engine SN 2225727)
GCV160 (Type A1A)(Type A2A)(Type A2R)(VIN# GJAE-1000001-9999999) Small Engine GCV160A (Type A1A) (Type A1AF)(VIN# GJAEA-1000001-5386302) Small Engine GCV160A (Type A1AE) (Type A1AS)(VIN# GJAEA-1000001) Small Engine GCV160A (Type A2A)(VIN# GJAEA-1000001-6699999) Small Engine GCV160A (Type A2R)(VIN# GJAEA-1000001-5386302) Small Engine GCV160A (Type A3A)(VIN# GJAEA-1000001-6699999) Small Engine GCV160A (Type BHH)(VIN# GJAEA-1000001-5386302) Small Engine GCV160A (Type E1A2)(Type E5A4) (Type EHHB)(VIN# GJAEA-8000001-8018819) Small Engine GCV160A (Type N1A)(Type N1AF)(VIN# GJAEA-1000001-5386302) Small Engine GCV160A (Type N5A)(VIN# GJAEA-1000001) Small Engine GCV160A (Type N5AF)(VIN# GJAEA-1000001-5386302) Small Engine GCV160A (Type NBL1)(VIN# GJAEA-1000001) Small Engine GCV160LA (Type A2R)(Type N2)(VIN# GJAEA-5386303) Small Engine GCV160LA (Type E1A2)(VIN# GJAEA-8018820) Small Engine GCV160LA (Type N1A)(VIN# GJAEA-5386303) Small Engine GCV160 (Type N1)(Type N2)(VIN# GJAE-1000001-9999999) Small Engine GCV160A (Type E1A4)(Type E1G7)(VIN# GJAEA-8000001-8018819) Small Engine GCV160LA (Type A1A)(VIN# GJAEA-5386303) Small Engine GCV160LA0 (Type E1A2) (Type N1A)(VIN# GJARA-1000001) Small Engine GCV160LE (Type A2A9)(Type A4A9)(VIN# GJAAE-1000001) Small Engine
