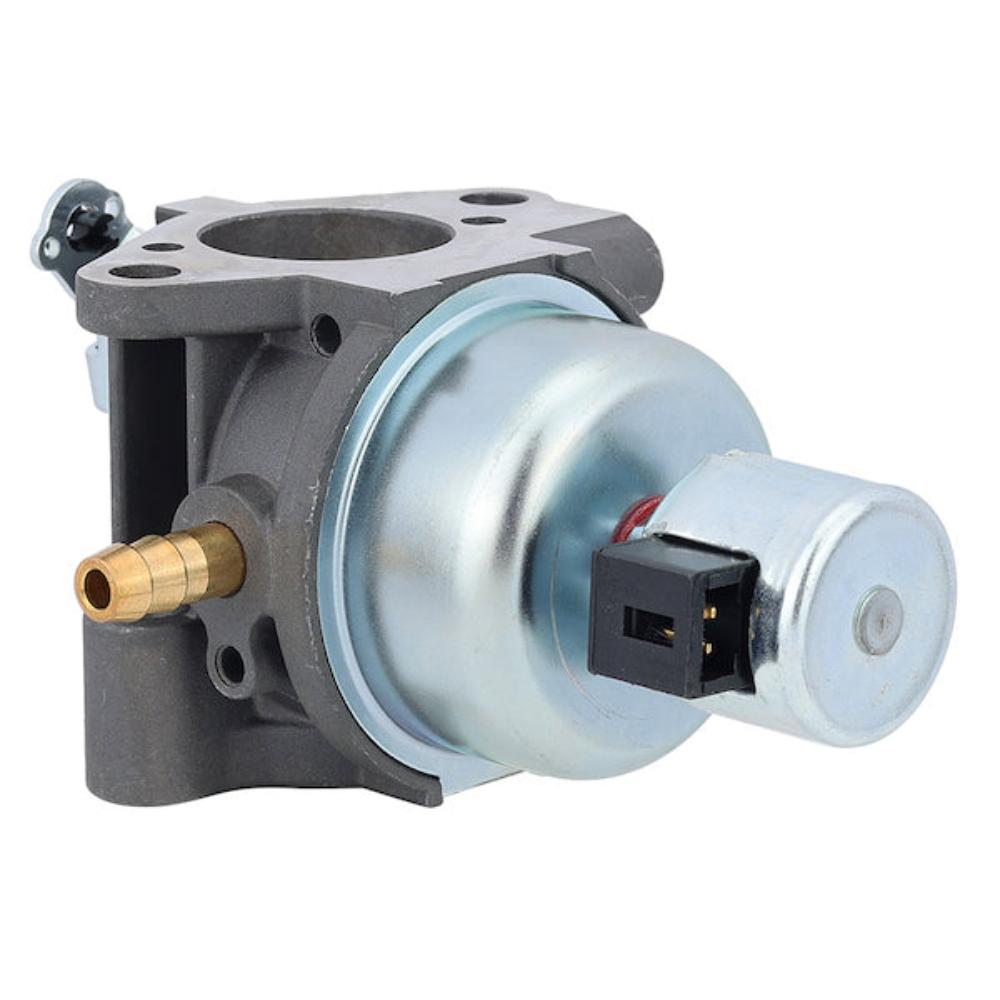

Carburetor Kit for Kohler Courage SV470 SV480 SV530 SV540 SV590 SV600 SV620 18HP to 22HP Engine Lawn Mower # 20 853 16-S 33-S 14-S

Carburetor Kit for Kohler Courage SV470 SV480 SV530 SV540 SV590 SV600 SV620 18HP to 22HP Engine Lawn Mower # 20 853 16-S 33-S 14-S

Regular price $31.89 USD
Regular price $36.29 USD Sale price $31.89 USD
Sale Sold out
Shipping calculated at checkout.

Model Fit Guide

Product Size Air filter size: Width 5-3/8-inch x Length 6-3/4-inch x Height 1-3/8-inch.
Oil filter size: HT 3-1/8-inch, OD 3-inch, Seal OD 2-13/16, Mounting Thread 3/4-inch-16, Micron: 27, Relief pressure: 8-11 PSI
Parts for Kohler engines SV470 SV471 SV480 SV530 SV540 SV541 SV590 SV591 SV600 SV601 SV610 SV620 19HP 20HP 21HP 22HP
Parts for MTD CC engines LT-4600H 13AX79TH090 (2008)
i1046 Tractor 2008 & After, 17AF9BKH010, 17AF9BKH056, 17AE9BKH010, ZTT46 i1046 Tractor 2008 & After
LT1042 Tractor (2007 & before), 13BX11CG710, 13BX11CG709, 13BX11CG712, 13AX11CG710
LT1042, 13AX11CG756, 13AX11CG709, LT1042 Tractor (2008 & after), 13AX11CG010
LT1045 Tractor (2007 & before), 13AX11CH710, 13AX11CH712, 13AX11CH709, 13AX11CH756, 13BP11CH710, 13BP11CH709, 13BP11CH756,13RX11CH756
LT1045 Tractor (2008 & after), 13AX11CH009, 13AX11CH010, 13RX11CH056, 13RX11CH256, 13AX11CH056, 13AX11CH256
LTX1042 Tractor (2010), 13AX91AS010 (2010), 13WX91AS010 (2010)
LTX1045 Tractor (2009), 13AX91AT010 (2009), 13AX91AT056 (2009), 13RX91AT056 (2009), 13AX91AT256 (2009), 13RX91AT256 (2009)
LTX1045 Tractor (2010), 13AX91AT010 (2010), 13RX91AT056 (2010), 13WX91AT010 (2010)
RZT42 17AE2ACG (2008 - 2009), 17AE2ACG010 ,RZT42 17AE2ACG (2010), 17AE2ACG010 (2010)
Parts Details Carburetor compatible Kohler # 20 853 33-S, 20 853 16-S, 20 853 14-S, 20 853 02-S, 20 853 01-S, 20 853 42-S, 20 853 43-S
Air filter compatible with # 20 083 02-S, 20 083 06-S, 2008302
Pre cleaner compatible with # 20 083 03, 20 083 03-S and 20 083 04-S
Fuel pump compatible with # 24 393 16-S
Oil filter compatible with # 52 050 02-S
Fuel filter compatible with # 25 050 22-S, 25 050 21-S, 12 050 13-S, 25 050 07-S
Spark plug compatible with # 12 132 02-S

Product Specifications

● Package:

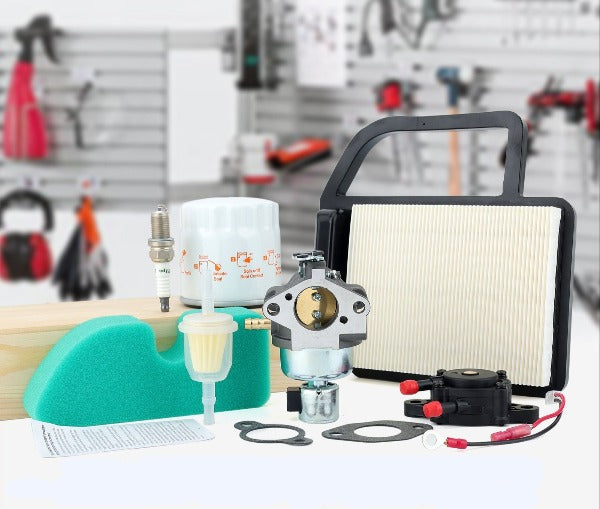

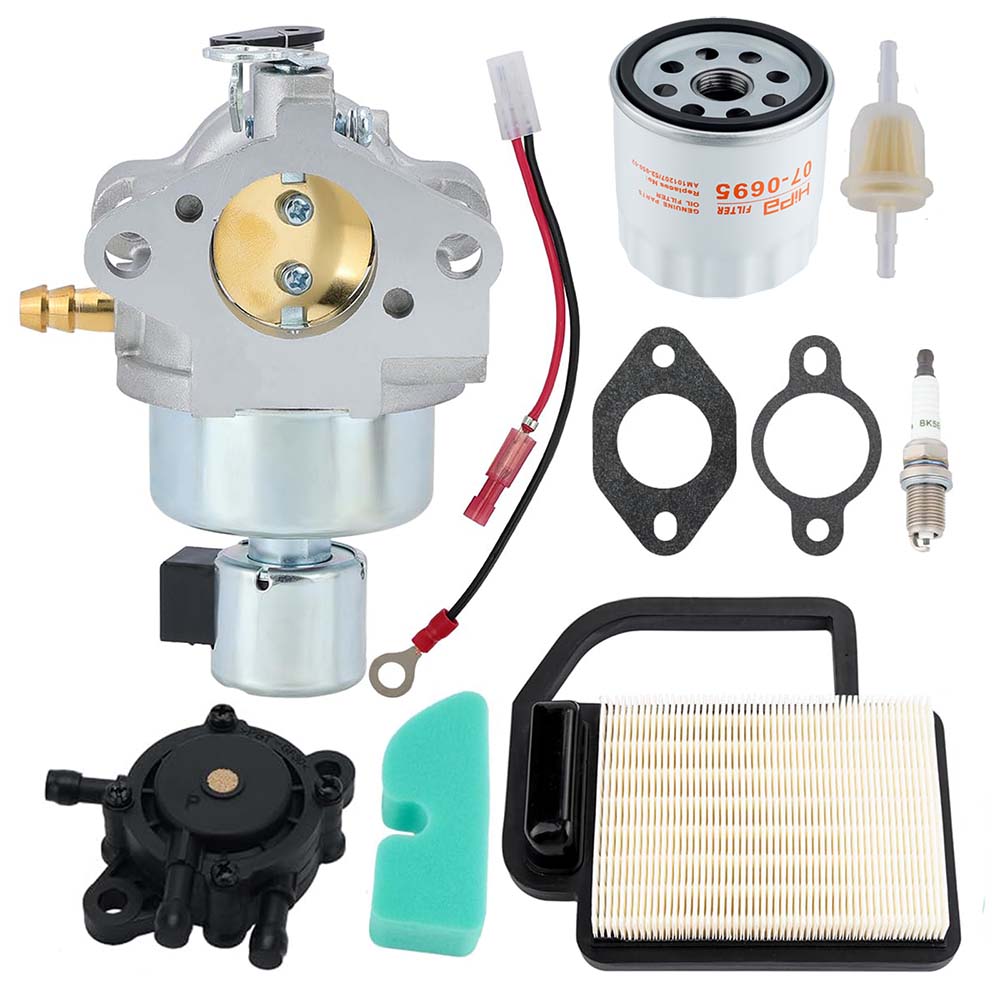

Carburetor*1, Fuel filter*1, Spark plug*1, Air Filter Cleaner*1, 1*Fuel pump, Oil filter*1, carb rebuild kit*1.

[Carburetor Dimension]:

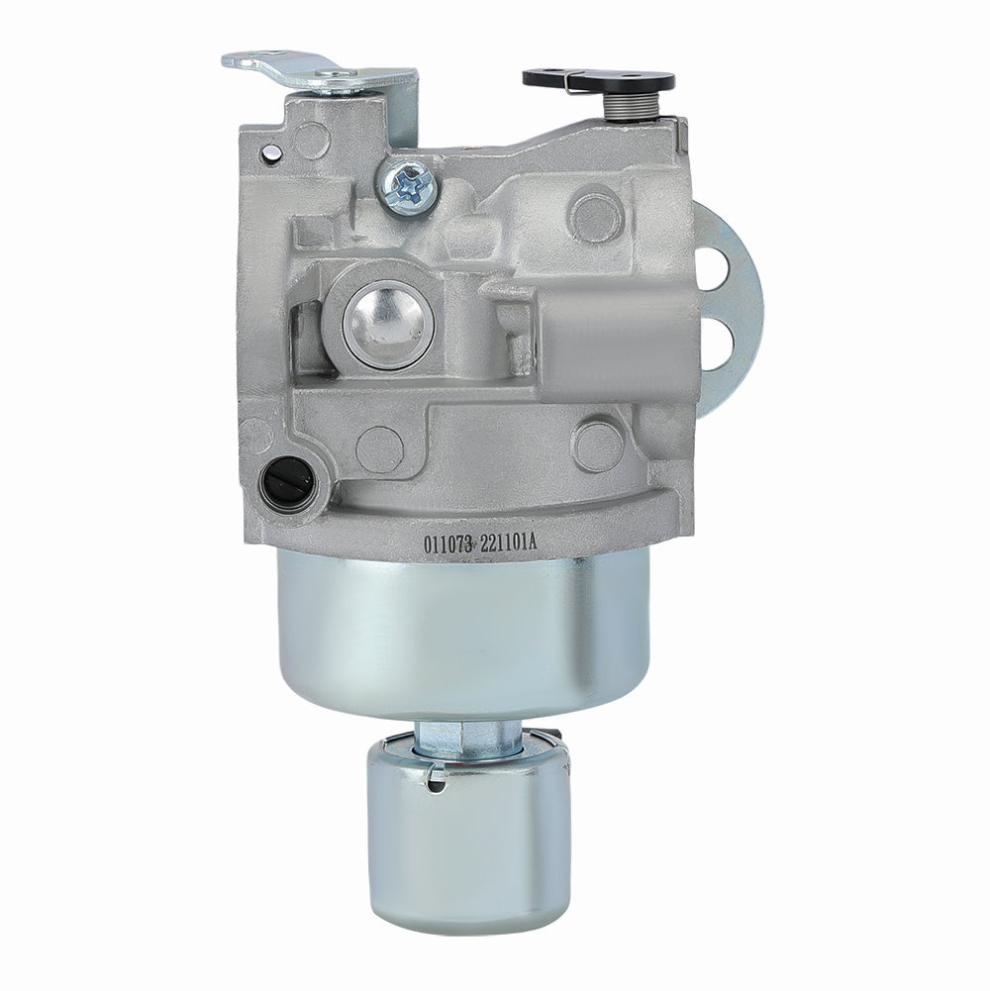

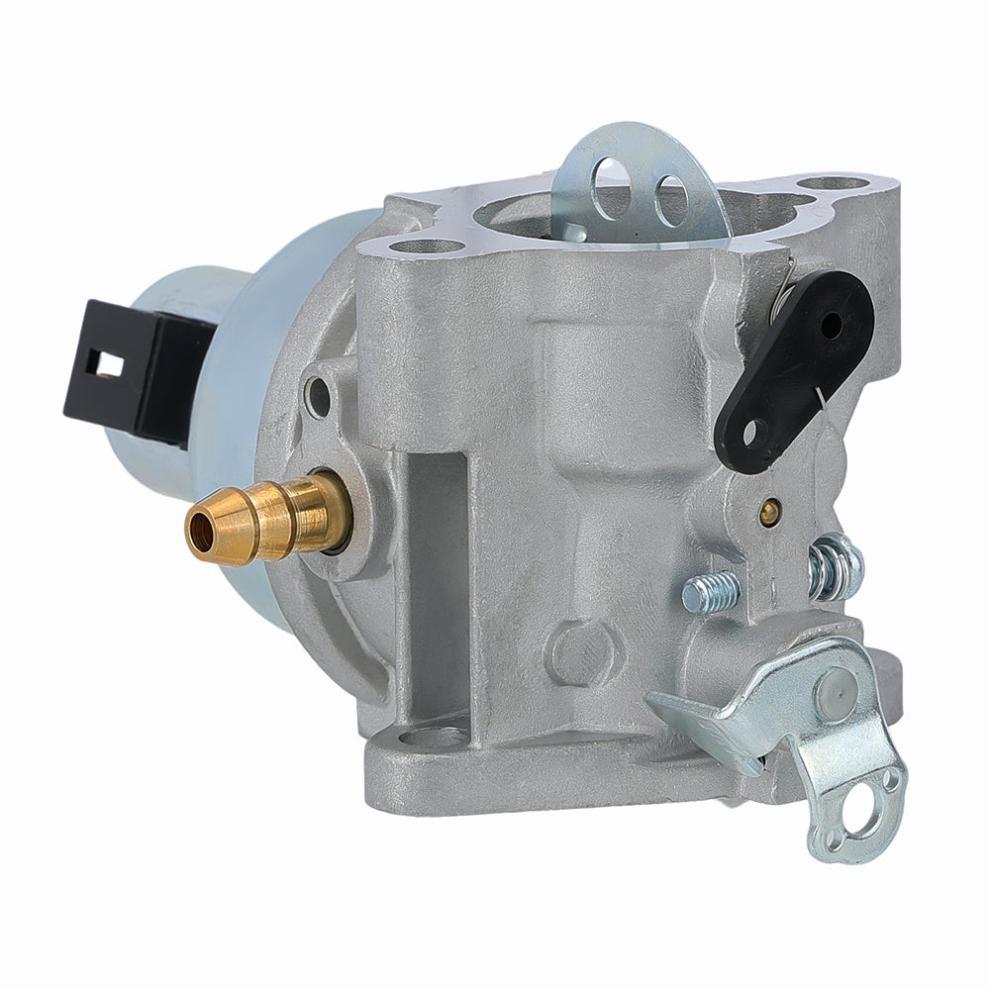

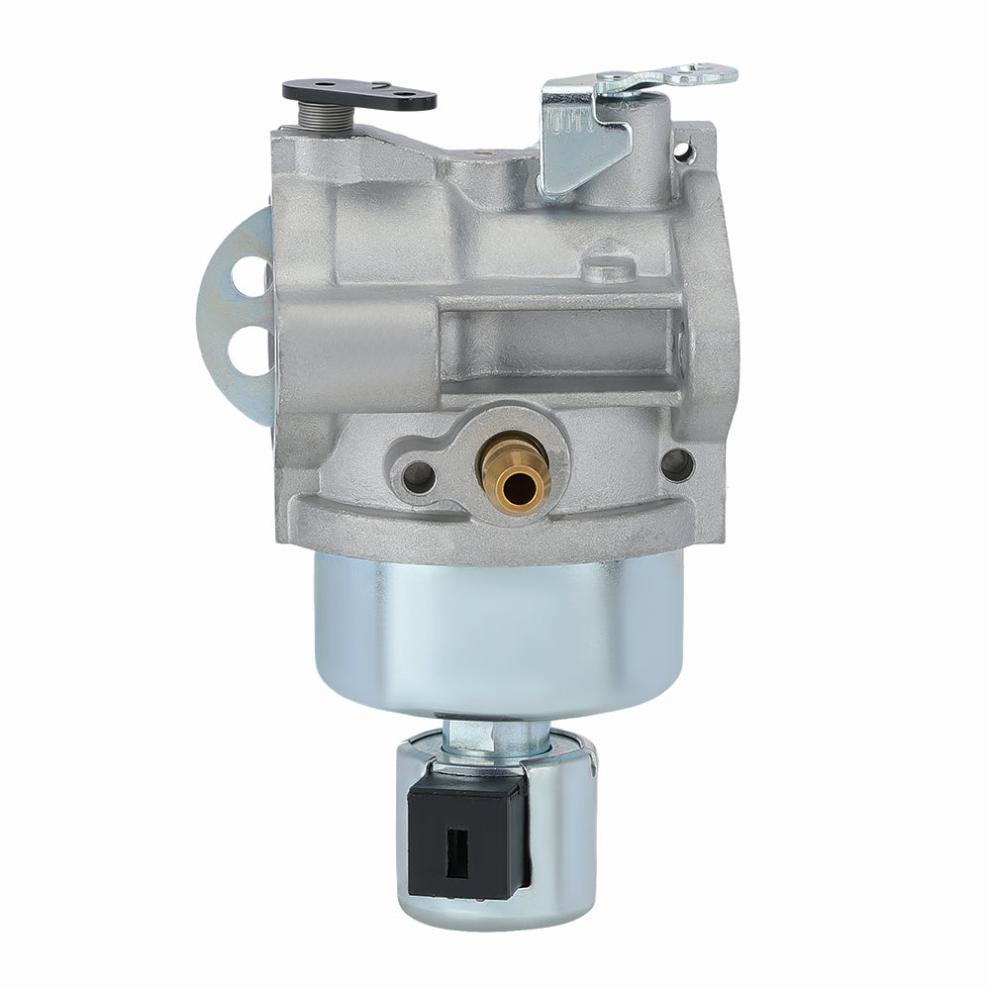

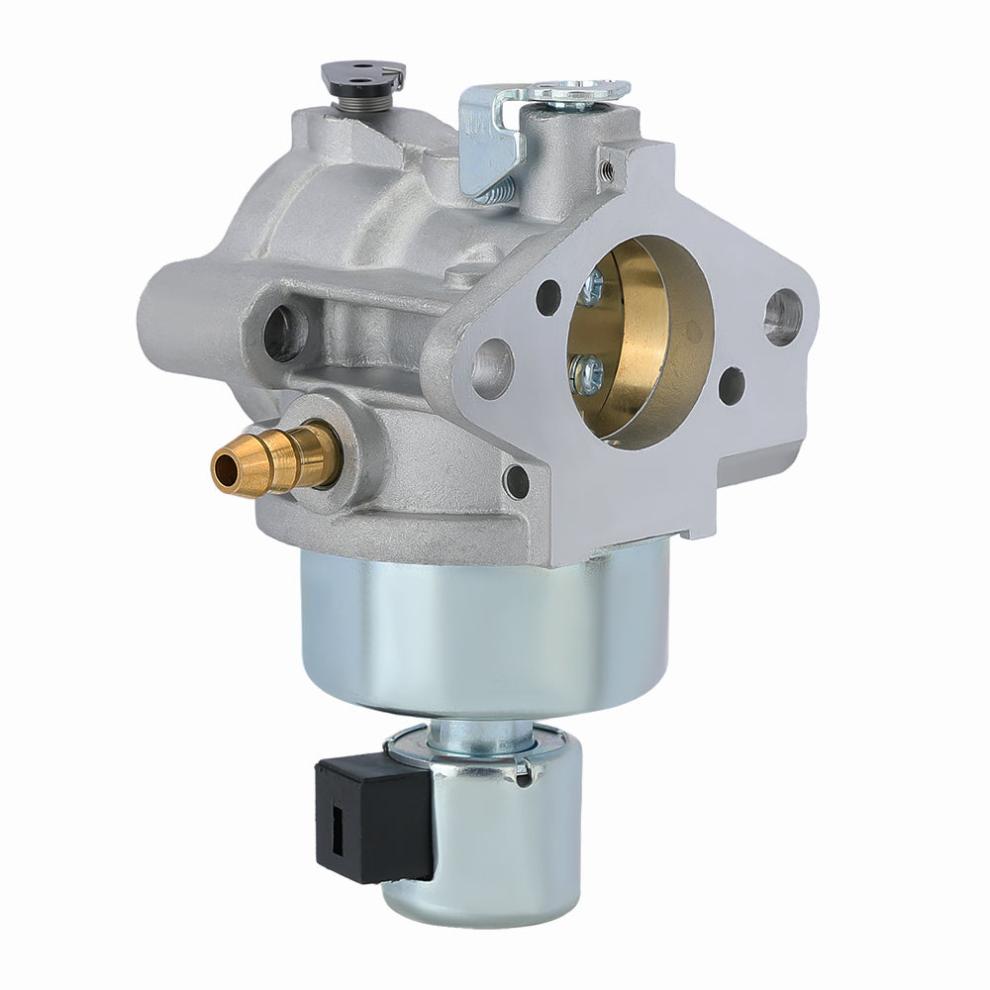

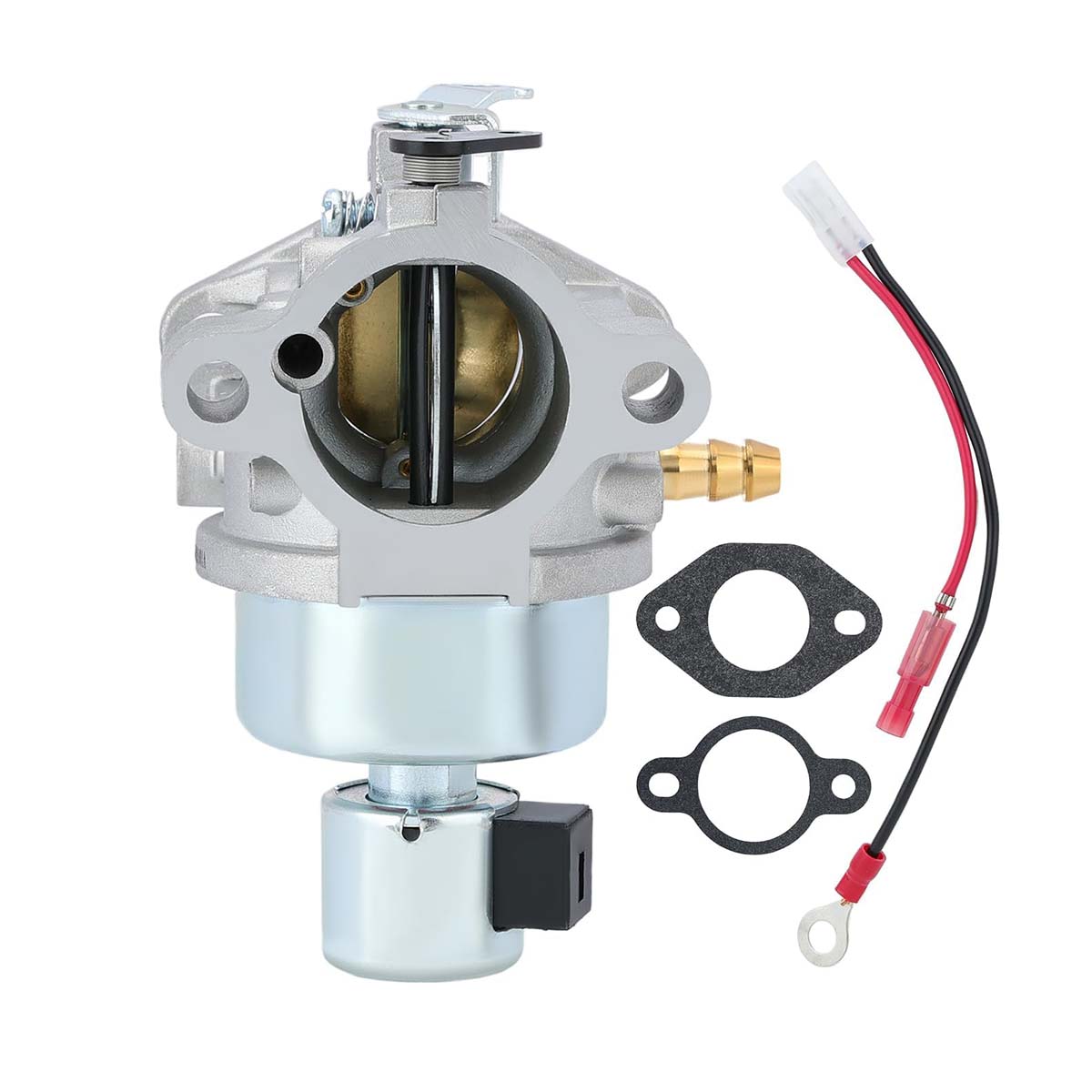

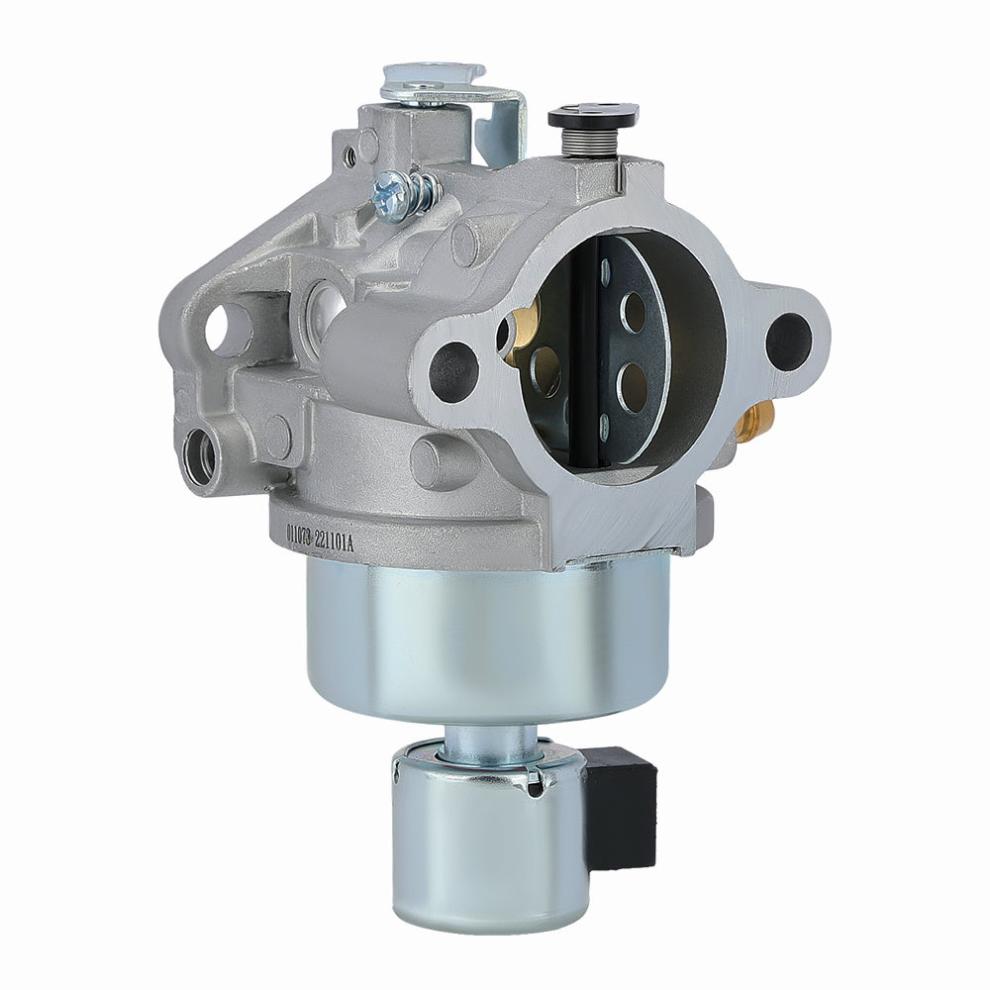

Mounting Hole Distance(Center to Center): 52mm, Throttle Bore Diameter: 26mm, Choke Bore Diameter: 32mm, Venturi Diameter: 24mm, Fuel Inlet Line Diameter:7.5mm.

● Genuine HIPA Carburetor, Precision in Every Detail
CNC High-Precision Needle Valve and Mixture Screws for Accurate Fuel Supply.

● Quality Material, Quality Carburetor
Resistant to Heat, Corrosion, and Wear
Brass Components(fuel fitting, throttle plate, idle mixture screw, main nozzle),Zinc Plated Float Bowl, High-Density Plastic Float, Anodized Aluminum Carburetor Body.

Engine won't start? Starts then stalls? Runs rough? Hesitates before accelerating? Blows black smoke? RPM is surging up and down? Or leaks gas from the air filter?
If your engine is suffering from these common engine problems, Hipa's carburetor all-in-one repair kit offers you the ultimate solution. DIY with 1,000,000+ Hipa members to get your engine up and running like new again, once and for all.

Youtube Video to Help You Renew Your Engine with Hipa Parts
